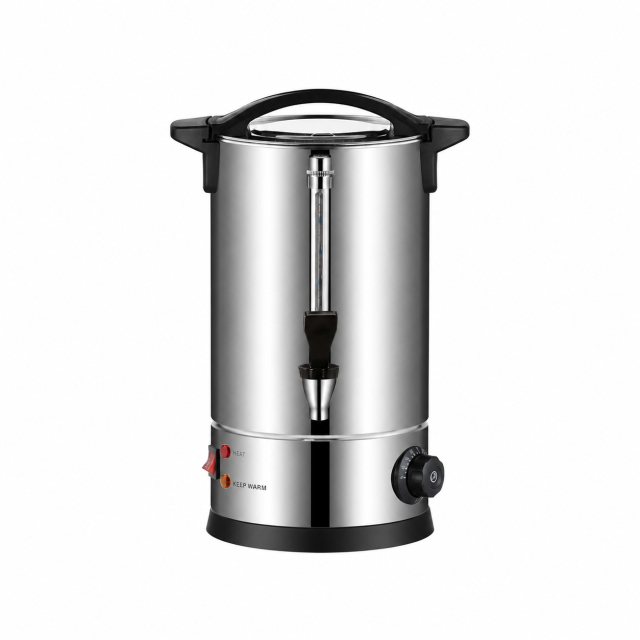

Double Wall Stainless Steel Water Boiler with N Shape Water Gauge and B Rotary Lock Lid is designed for commercial hot water service in hotels, restaurants, catering events, breakfast buffets and beverage service counters.
The double wall stainless steel body uses 304 stainless steel for the inner wall and 201 stainless steel for the outer wall. It includes N Shape Water Gauge, B Rotary Lock Lid, indicator light, knob thermostat, dry-boil protection and 304 stainless steel heating element.
Features
- Capacity options: 8L / 10L / 12L / 15L / 25L / 35L / 45L / 50L
- Water gauge: N Shape Water Gauge
- Rotary lock lid: B Rotary Lock Lid
- Inner wall: 304 stainless steel
- Outer wall: 201 stainless steel
- Heating element: 304 stainless steel heating element
- Voltage: 220V-240V / 50Hz; 110V-120V / 60Hz
- Faucet options: Three faucet options available: stainless steel faucet, plastic faucet style 1 and plastic faucet style 2 shown in the reference image
- Plug customization: EU / UK / US / AU and other country plugs can be customized
- Finish: Brushed silver standard; gold, rose gold, black, white and custom colors available
- Suitable for hotel buffet, restaurant, catering and beverage station use
Capacity Specifications
| Label Capacity | Full Water Capacity | MAX Mark Capacity | Power | Height | Diameter |
|---|
| 8L | 6.1L | 5L | 1800W / 1200W | 38cm | 21cm |
| 10L | 7L | 5.7L | 1800W / 1200W | 44cm | 21cm |
| 12L | 11.3L | 9.2L | 1800W / 1200W | 44cm | 26.5cm |
| 15L | 15.3L | 14L | 1800W / 1200W | 51.5cm | 26.5cm |
| 25L | 16L | 15L | 1800W / 1200W | 56.5cm | 26.5cm |
| 35L | 21.6L | 19.5L | 2800W / 1400W | 51.5cm | 31.5cm |
| 45L | 25.5L | 23.4L | 2800W / 1400W | 56.5cm | 31.5cm |
| 50L | 34L | 32.3L | 2800W / 1400W | 65cm | 31.5cm |
Specifications
- Model No.: YT-WBW-N-B
- Capacity Options: 8L / 10L / 12L / 15L / 25L / 35L / 45L / 50L
- Product Type: Double wall electric water boiler
- Water Gauge Type: N Shape Water Gauge
- Lid Type: B Rotary Lock Lid
- Inner Wall Material: 304 stainless steel
- Outer Wall Material: 201 stainless steel
- Heating Element: 304 stainless steel heating element
- Voltage: 220V-240V / 50Hz; 110V-120V / 60Hz
- Faucet: Three faucet options available: stainless steel faucet, plastic faucet style 1 and plastic faucet style 2 shown in the reference image
- Plug: EU / UK / US / AU and other country plugs can be customized
- Color / Finish: Brushed silver standard; gold, rose gold, black, white and custom colors available
- Functions: Indicator light, knob thermostat, dry-boil protection
- MOQ: Confirmation after inquiry
- Lead Time: Confirmed based on order quantity and customization requirements.
- Application: Hotel buffet, restaurant, catering, breakfast service, beverage station
OEM/ODM Service
Yingtai supports wholesale orders and OEM/ODM customization for hotel suppliers, catering equipment distributors and beverage service equipment importers. Custom logo, packaging, plug type, color finish and product detail adjustments are available.
